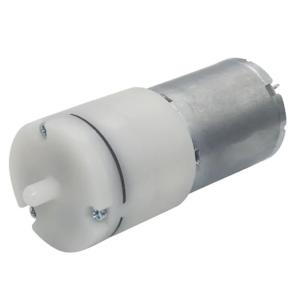

RF-370CA-15380 12v Dc Motor 5000 Rpm High Speed For Mini Air Pump Motor

Name: RF370CA15380 12v Dc Motor 5000 Rpm High Speed For Mini Air Pump Motor
Brand: Lihua Motor/ HCS Motors
Price: 1 USD

China RF-370CA-15380 12v Dc Motor 5000 Rpm High Speed For Mini Air Pump Motor wholesale

Brand Name : Lihua Motor/ HCS Motors

Model Number : RF-370CA-15380 For Air Pump

Certification : ISO9001/CE/RoHs/Reach

Place of Origin : Dongguan,Chia

Place Of Origin : China

MOQ : 3000PCS

Price : Negotiation

Payment Terms : L/C,T/T,D/A,D/P,Western Union,MoneyGram

Supply Ability : 30000PCS/Day

Delivery Time : 35-45Days

Packaging Details : Carton

Motor Type : RF-370CA-15380

Nominal Volt : 12V

Motor Shaft Diameter : 2mm

No-Load Current : ≤25mA

No-Load Speed : 5400±432 r/min Or as you need

Shaft Length : 6.5±0.2mm

Noise : <62dB(30cm Away)

Motor Applications : Mini Air Pump/ Mini Water Pump/Massager/Auto Acutator

Name : Brushed DC Electric Motor

Contact Now

RF-370CA-15380 12V 5000Rpm Mini Motor DC High Speed For Mini Air Pump Motor CE

RF-370CA-15380 Mini Air Pump Micro Motor Technical Parameter

1.Model: RF-370CA-15380

2.Motor diameter: 24.4±0.3mm

3.Motor length: 30.8mm (Without Shaft Length)

4.Output shaft diameter: 2mm

5.Output shaft length:6.5±0.2mm or as your request

6.Weight: 50g

7.Rated Volt:12V

8.Operating Voltage Range:11V-13V

9.No-load Speed:5400±432 r/min

10.No-load Current:25mA

11.Rotating Direction:CCW

12.Operating Temperature:-20℃～＋70℃

13.Mechanical Noise:45dB

14.Customization Service:Voltage, speed,torque and current can be custom.

15:Lifetime test with mini pump: 200, 000 cycle (4s on, 1s off)

16.Environment: 25±5℃ / 40%-70%RH

17.Applications:Sweeper, electric toothbrush, intelligent robot, intelligent lock, small household appliances (coffee machine, soybean milk machine, etc.), medical equipment, beauty equipment, adult products, electric tools, massage instrument, electric push rod

18.Motor life :30000times

12V 24V 6000Rpm 24mm Mini 370 Motor Electric Motor Types and Dimension

Model	Voltage(V)		No Load		Rated Load				Stall
	Range	Rated	Speed	Current	Torque	Speed	Current	Output	Torque	Current
	Range	Rated	R/min	A	m.Nm	R/min	A	W	g.cm	A
RF-370CA-22170	3-6V	6.0V	6000	0.041	2.37	5263	0.273	1.18	186	1.82
RF-370CA-12560	8-12V	12.0V	3700	0.012	1.96	3030	0.066	0.60	130	0.37
RF-370CA-15370	8-12V	12.0V	5600	0.020	2.14	4876	0.123	1.03	176	0.85
Customized product parameter are available upon your request Note:1mNm= 1Ncm = 10.2gcm

RF-370CA-15380 12v Dc Motor 5000 Rpm High Speed For Mini Air Pump Motor

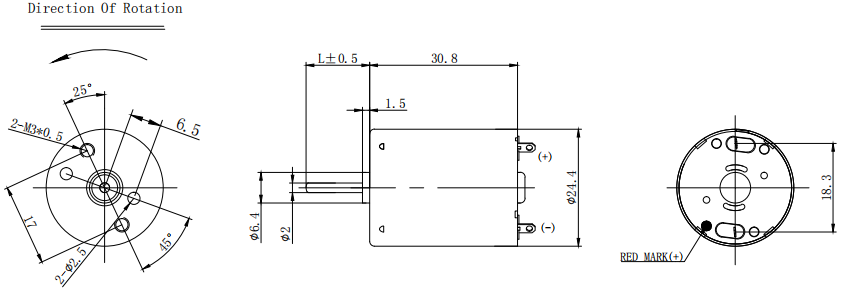

Notes:
1.Motor Body Length:30.8mm
2.Motor Output Shaft Length:6.5±0.3mm Or free customization
3.Motor Output Shaft Diameter:2mm
4.Motor Diameter:24.4mm Max
5.Fixed Aperture:2.5mm
6.Step Height: about 1.5mm
7.Step diameter: about 6.4mm
8.Distance between two fixed aperture:17±0.05mm

Key Roles and Application Advantages of 370 Micro Motors in Micro Water Pumps

The role of the 370 micro motor in micro water pumps is primarily reflected in providing power, regulating flow and pressure, and ensuring stable operation. Specifically:

Providing Power:
The 370 micro motor serves as the power source for micro water pumps. Through the principle of electromagnetic induction, it generates rotational torque to drive the rotor or impeller inside the pump, thereby enabling the suction, compression, and discharge of liquids.

Regulating Flow and Pressure:
The speed and power of the motor can be adjusted through a control system, allowing for precise control of the pump's flow rate and pressure. This enables the pump to adapt to different working scenarios and requirements, improving overall efficiency.

Ensuring Stable Operation:
High-quality 370 micro motors can ensure the long-term stable operation of the pump, reducing failure rates and maintenance costs.

Additionally, the characteristics of the 370 micro motor, such as low noise, long lifespan, and cost-effectiveness, make it widely applicable and practical in micro water pumps. For example, the 370 micro diaphragm vacuum pump can be used in devices such as spray disinfectors, coffee machines, water dispensers, water purifiers, and tea brewers, where it performs exceptionally well.

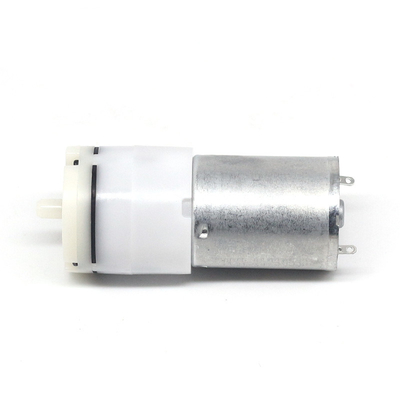

Product Type:	Small Air Pump	Voltage:	6V
No Load Current:	250-600Ma	Max Pressure:	60-140kPa
Air Tightness:	<3mmHg/min (100CC 300mmHg)	Noise:	<62dB(30cm Away)
Apply:	Air	Life Test:	30,000 Cycle (10s On,5s Off)
Usageenvironment:	5-50°C 30-80%RH	Product Net Weight:	60g
