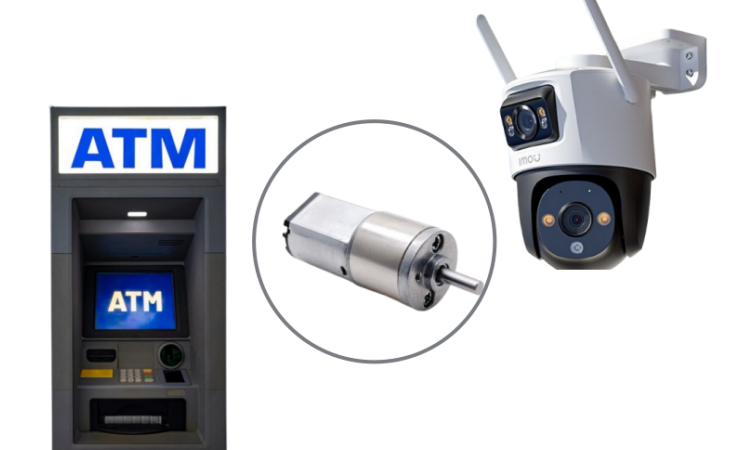

16mm Micro Metal Gear Motor 3V 6V Gear Reduction Electric Motor Gearbox For ATM

16mm Micro Metal Gear Motor 3V 6V Gear Reduction Electric Motor Gearbox For ATM

The 16mm Gear Motor DC combines a high-efficiency DC motor with a precision 16mm diameter gear reduction box, offering exceptional torque output in an ultra-compact package. With customizable gear ratios including:

✔ Standard Options: .Reduction Ratio: 18,25,30,36,50,60,71,85,100,120,169,200,239,284,336
✔ Custom Ratios: Tailored to your exact speed/torque requirements

✔ Custom Gearbox Height:

The gearbox is available in multiple lengths (11.2mm, 12.7mm, 14.2mm, 15.7mm,17.2mm) for flexible integration across applications.

1.Small size dc gear motor with low speed and big torque
2.16mm gear motor provide 0.1Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application

16mm Gear Motor Specifications

Model : GA16-030 micro metal gearmotor

Gearbox: 16 mm Dia metal spur gear reducer

030 Motor Size:12mm*15mm*18.6 (H*D*L)

Shaft : Φ3mm D-cut 0.5mm,custom

Gear Box Size:16mm*L mm (Length can be customized)
Shaft size : Approx. 3 x L mm (Dia.*L)
Nominal Voltage : DC 3V 5V 6V 8V

Operating Voltage:3V-9V 18V-26V
Revolving speed custom:
15RPM/18 RPM / 25 RPM / 35 RPM / 59 RPM / 70 RPM / 100RPM/120 RPM / 140 RPM / 250 RPM / 500 RPM

6V : 15RPM / 29 RPM / 120 RPM / 200 RPM
12V : 18 RPM / 70 RPM / 100 RPM /200RPM / 300 RPM / 400 RPM / 1000 RPM
Commutation: Carbon brush/Graphite brush/Metal brush;
Construction: micro Permanent Magnet iron cored dc electric motor;

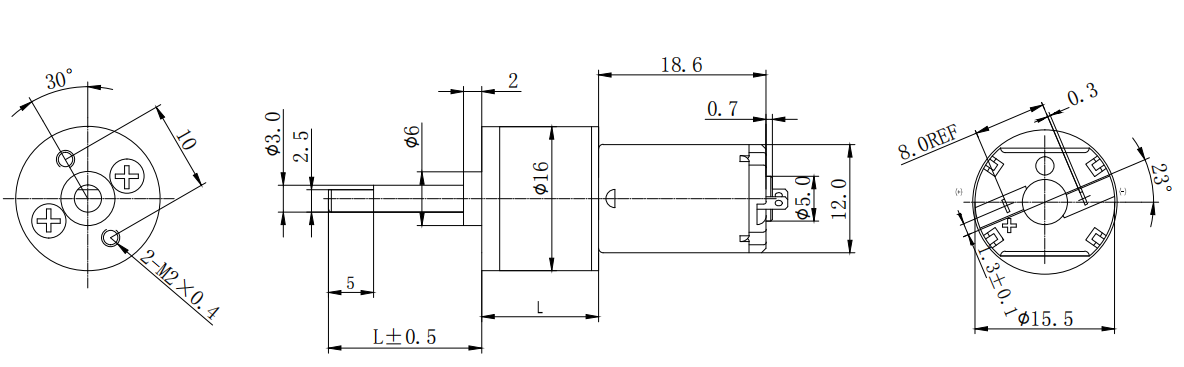

16mm Micro Metal Gear Motor 3V 6V Gear Reduction Electric Motor Dimensions

Motor Outline Features:

• Single 030 Motor Size:12mm*15.5mm*18.6(H*Dia*L)
• Single 030 Motor Type:RF-030/RK-030
• Gearbox Diameter:16±0.2mm
• Gearbox Step Height:2mm
• Gearbox Shaf Diamteter:3mm or 3mm D shaft (D-shaped output shaft is processed and milled to increase the force and friction, making the transmission more stable and convenient to connect and fix)
• Mounting Screw Holes Size:2*0.4mm
• Mounting Screw Holes Distance:10mm
• Gearbox Outshaft Shape/Length can be custom

16mm Micro Metal Gear Motor 3V 6V Gear Reduction Gear Motor Parameter List

The above list of parameters is a general parameter, if different needs can be processed according to requirements.

*Remarks: The / in the table indicates that it is not possible to block the rotation, if it occurs, it may lead to damage to the internal gears.

The above list of parameters is a general parameter, if you have different needs can be processed according to requirements.

16mm High-Torque DC Gear Motor - Precision Power in Compact Design

Our premium 16mm DC gear motors deliver exceptional torque density in an ultra-compact package, engineered to excel in the most challenging applications. Built with precision-machined metal gears and premium components, these motors offer unmatched reliability for continuous operation.

Key Features & Benefits:

✔ High-Torque Output

• Delivers up to 0.5Nm torque (3W power rating)

• Maintains consistent performance under heavy loads

• Ideal for applications requiring substantial starting torque

✔ Compact & Efficient Design

• Space-saving 16mm diameter housing

• Optimized gear geometry for maximum power transfer

• Lightweight construction for portable applications

✔ Advanced Engineering

• Precision-sealed construction (IP42 standard)

• Dust and moisture resistant for harsh environments

• Low-noise operation (<45dB) for sensitive applications

✔ Versatile Power Options

• Wide voltage range compatibility (3V-24V DC)

• Custom winding options available

• Multiple gear ratio selections (20:1 to 800:1)

Ideal for:

• Industrial automation systems

• Robotics and mechatronics

• Medical equipment drives

• Automotive applications

• Smart home devices

Micro Metal Gear Motor

Metal Gear Motor 3V

6V Gear Reduction Electric Motor

16mm Micro Metal Gear Motor 3V 6V Gear Reduction Electric Motor Gearbox For ATM Images
